MicroCNX® Series Connector

See MicroCNX Products

Building on the inventiveness of CPC, the leader in single-use connection technology, the MicroCNX® line introduces a new category of aseptic micro-connectors that provide a simple, efficient method of connecting tubing for small format biomanufacturing assemblies. Process engineers and operators specify MicroCNX sterile micro-connectors as the modern alternative to the cumbersome, industrial process of tube welding. The MicroCNX line is engineered specifically for the challenging conditions of biologic media transfer in bioprocessing, cell therapy and gene therapy applications.

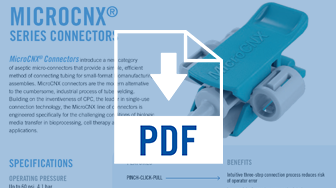

Assets & Downloads

Features Benefits
PINCH-CLICK-PULL Intuitive three-step connection process reduces risk of operator error
Easy to use Lowers risk of operator error and related performance, reliability and safety concerns
Genderless Eases single-use systems specifications with one part number for both halves
CPC Click Audible confirmation of assembly with no additional hardware required

Specifications & Cv Value

Operating Conditions (Fluid Transfer)

Pressure: Up to 60 psi, 4.1 bar
Up to 75 psi, 5.1 bar for 48 hours
Temperature: 34°F to 104°F (1°C to 40°C)

Materials

Main Components: Polycarbonate (white), USP Class VI, ADCF
Seals: Silicone (clear), platinum-cured, USP Class VI, ADCF
Protective Cover: Polypropylene (teal), USP Class VI, ADCF
Membrane Hydrophobic Polyethersulfone (clear), USP Class VI, ADCF

Sterilization

Gamma Up to 50 kGy irradiation
Autoclave One Cycle up to 266°F (130°C) for 60 minutes

Cv Value (Typical Flow Rate)

Cv Value Range: 0.04-0.27 for MicroCNX hose barb terminations
straight-through
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path.
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions. Use the graph above as a guide.

Validation Reports

Extractables Reports

Products

CNX17001HT

1/16" Hose Barb Genderless MicroCNX Connector

CNX17002HT

1/8" Hose Barb Genderless MicroCNX Connector

CNX17003HT

3/32" Hose Barb Genderless MicroCNX Connector
