    Everis PLQ4

    See Everis PLQ4 Products

    The Everis PLQ4 Series of quick disconnects provides ultra-reliable connections and dripless disconnections that protect sensitive electronic systems being cooled via liquid cooling. Built of polyphenylsulfone (PPSU), a high-performance thermoplastic, the Everis PLQ4 connector is lightweight and inherently resistant to galvanic corrosion. Everis PLQ4 connectors are rated UL94 V0 flame retardant and are easy to use making them a perfect choice for liquid cooling of electronics applications. These industry-leading connectors offer a high-flow capacity to optimize thermal management system performance. The Everis PLQ4 Series uses patent-pending CPC-developed valve technology that eliminates drips and is specifically designed for long-term connected states.

    Assets & Downloads

    PDF Spec Sheet

    Everis PLQ4 Series Connectors

    Everis™ PLQ4 Series quick disconnect couplings of high-performance thermoplastic for liquid cooling with 1/4" flow -- product specifications.

    FeaturesBenefits
    Made of high-performance PPSU materialLightweight, durable and chemically compatible with widely used liquid cooling fluids and UL94 VO flame retardant
    Non-spill valve designNo drips during connection or disconnection
    High flow to size ratio with low pressure dropIncreased cooling efficiency in small spaces
    Ergonomic body and latch designSimple, intuitive one-handed operation
    Audible click upon connectionProvides connection assurance
    Barbed and threaded termination optionsMeets preferences for mounting or tubing connections
    Robust product testing (product tested to 10,000 cycles)Reliability assurance with proven dimensional stability

    Specifications & CV Value

    Operating Conditions (Fluid Transfer)

    Pressure Range: Vacuum to 120 psi, 8.3 bar
    Temperature Range: 0°F to 240°F (-17°C to 115°C)
    Storage/Shipping: -40°F to 240°F (-40°C to 115°C)
    Flow Coefficient: Cv ~ 1.3 (1.1 Kv)

    Materials

    Main housing components: Polyphenylsulfone (PPSU)
    Valves and thumb latch: PPSU
    Valve spring (wetted): Stainless steel
    External spring: Stainless steel
    Seals: EPDM
    Seal spacer: PTFE
    Compliance: RoHS, REACH
    Color: Matte Black with Cool Blue or Warm Red
    Lubricants: Krytox® PFPE

    Other

    Tubing Sizes: 1/4" to 3/8" ID (6.4mm to 9.5mm ID)
    Spillage: <0.015 cc per disconnect at 0 psi
    <0.063 cc per disconnect rated at 200 psi
    Inclusion: <0.063 cc per connect

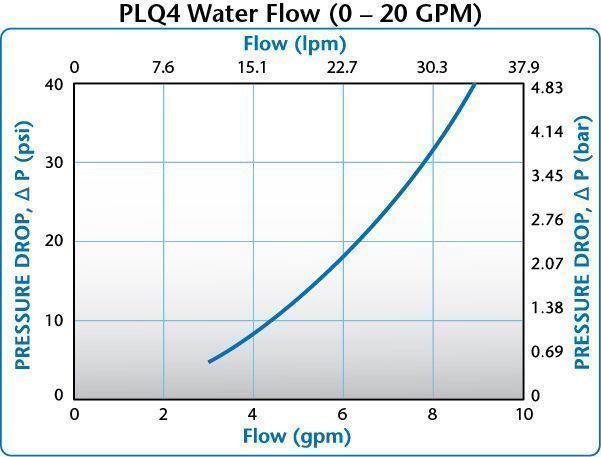

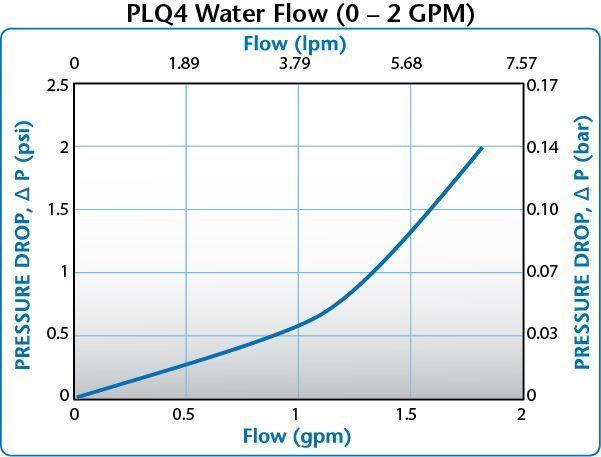

    Cv Value

    Cv ~ 1.3 (Kv 1.1)
    Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).
    WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
