    Sanitary

    See Sanitary Products

    Sanitary couplings attach directly to popular 3/4" mini and 1" maxi size sanitary connections, eliminating the need for cumbersome adapters or tubing assemblies. Direct attachment allows faster connection to and disconnection from installed, rigid and flexible piping systems.

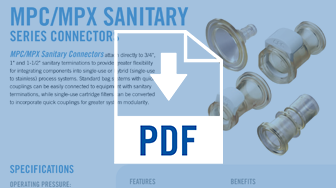

    Assets & Downloads

    Features Benefits

    Ergonomic thumb latch

    Easy to operate - even with gloved hands

    3/4" mini and 1" maxi sanitary terminations Install with standard gaskets and clamps
    Compatible with MPC and MPX Series Easy conversion to industry standard connections on single-use systems
    BSE/TSE free materials Meet ADCF requirements

    Specifications & Cv Value

    Operating Conditions (Fluid Transfer)

    Pressure: Vacuum to 60 psi, 4.14 bar
    Temperature: -40°F (-40°C) to 300°F (149°C)

    Materials

    Main components: Polysulfone (amber tint), USP Class VI, ADCF
    Seals: Silicone (clear), platinum-cured, USP Class VI, ADCF
    Sanitary sizes: 3/4" mini and 1" maxi

    Sterilization

    Autoclave: At 270°F (132°C) for 60 minutes, up to 25 cycles
    EtO: Up to five cycles
    Gamma irradiation: Up to 50 Kilograys
    E-Beam: Up to 50 Kilograys

    Cv Value

    Cv ~ 5.5 (79.25) max with MPC inserts
    Cv ~ 14.2 (204.60) max with MPX inserts
    Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).

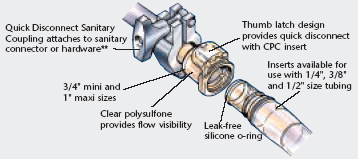

    Description of product assembly, features and benefits.
    WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.

    Products

    Body

    Insert
