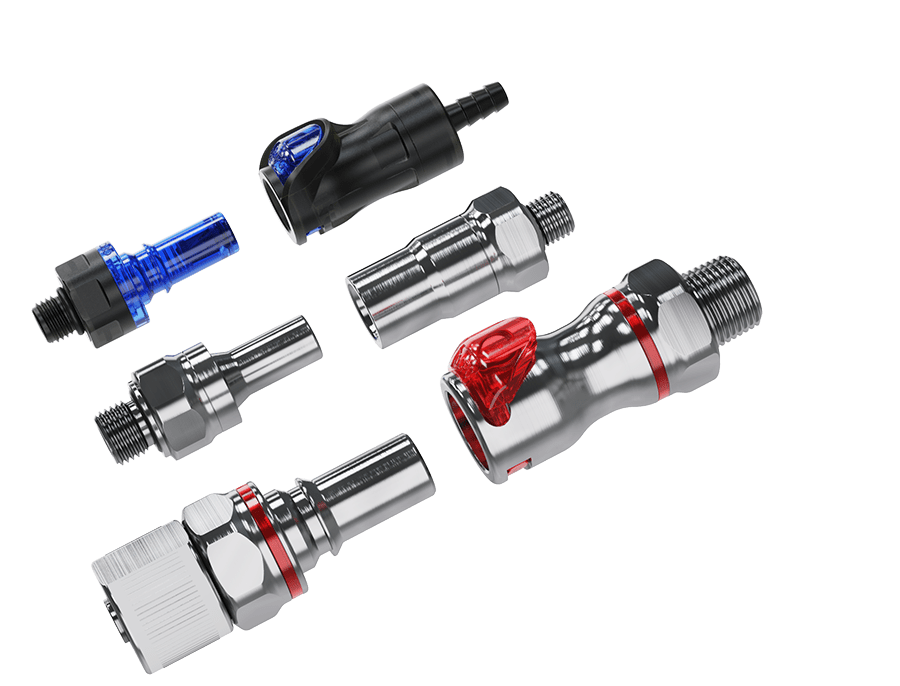

Built for liquid cooling: Everis^® quick disconnects

Thermal management fluid connectors need to be reliable. CPC designs and manufactures Everis^® quick disconnect couplings (QDs) to specifically meet the demands for high performance in liquid cooling for sensitive and critical environments. Everis quick release couplings from CPC offer strength and durability, ease of use, and reliability. Liquid cooling systems designers benefit from CPC’s application-specific innovation in a number of ways:

Everis QDs are designed to optimize flow and are compatible with a variety of coolants.
CPC's Everis liquid cooling QDs for thermal management applications provide ultra-reliable, dripless connection and disconnection.
Most importantly, the Everis line of liquid cooling non-spill connectors incorporate seals and a valve structure with features specifically designed for long-term, connected use.

Occasionally referred to as liquid cooling “fittings,” Everis brand quick release couplings from CPC are used in a variety of low pressure, high-flow liquid cooling applications. QDs are a critical connection for liquid cooling performance and uptime. And CPC Everis couplings are at the pinnacle. Learn more

As the global leader in quick disconnect couplings, CPC designs and manufactures innovative high-performance Everis quick disconnects expressly for the demands associated with liquid cooling: non-spill on connection or disconnection in 100% uptime environments. Click here to view the full line of Everis quick disconnects for thermal management. Questions? CPC collaborates. Just Ask An Engineer.

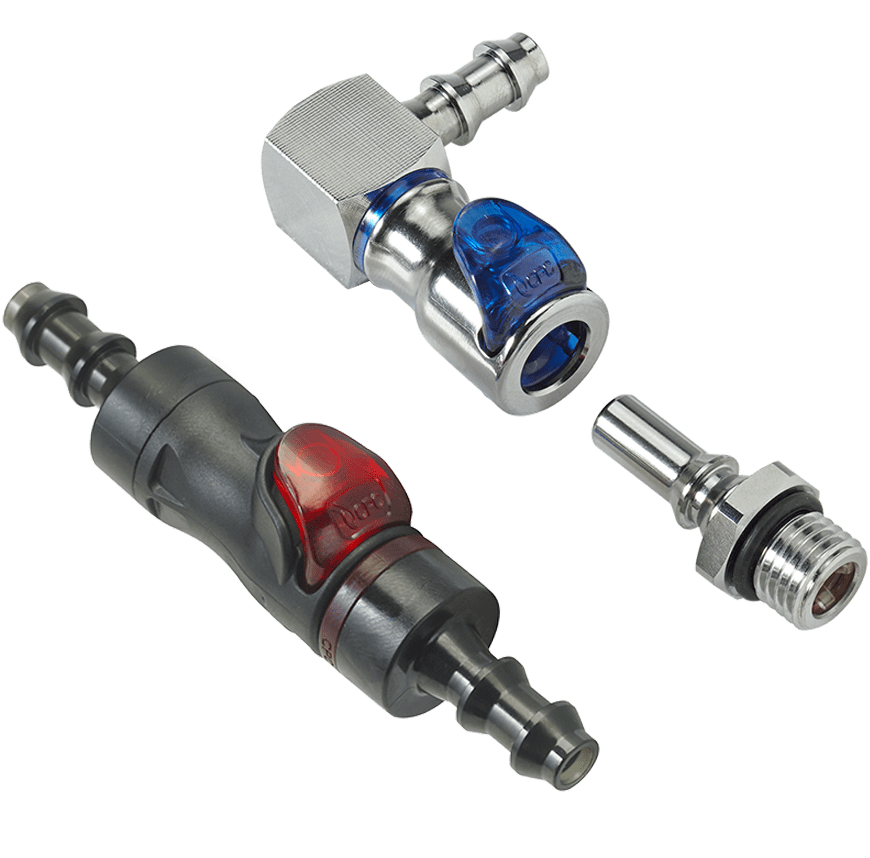

The Everis quick disconnect portfolio for liquid cooling includes three quick disconnect product lines

Everis LQ couplings feature an ergonomic design with an easy-to-use thumb latch
Everis BLQ connectors have tolerance and flow for rack-mounted applications
Everis PLQ quick disconnects are lightweight and not susceptible to galvanic corrosion

Everis quick release coupling features and benefits:

Patented non-spill design to avoid coolant drips at installation or service

Redundant multi-lobed seals for enhanced reliability and prevention of leaks

Optimal flow capacity to size ratio for high performance and cooling effectiveness in small spaces

Product breadth with innovative designs and quality manufacturing to meet system designers needs

Audible and sensory feedback (via intuitive, easy-to-use thumb latch) for connection assurance

Robust and durable construction with materials proven to withstand pressures for leak-free reliability

Everis LQ QD Line

Everis LQ2 quick disconnects Everis LQ4 quick disconnects Everis LQ6 quick disconnects Everis LQ8 quick disconnects

Pressure
Vacuum to 120 psi, 8.3 bar

Temperature
0°F to 240°F (-17°C to 115°C)

Flow
Nominal flow of 1/8" (3.2 mm) to 1/2" (12.7 mm)
Cv of 0.37 (Kv 0.32) to a Cv of 6 (Kv 5.2)

Terminations
Locking hose barb, hose barb, NPT, PTF, SAE & G thread (BSPP)

Everis BLQ QD Line

Everis BLQ2 quick disconnects Everis BLQ4 quick disconnects Everis BLQ6 quick disconnects

Pressure
Vacuum to 120 psi, 8.3 bar to vacuum to 200 psi, 13.8 bar

Temperature
0°F to 240°F (-17°C to 115°C)

Flow
Nominal flow of 1/8" (3.2 mm) to 3/8" (9.5 mm)
Cv of 0.37 (Kv 0.32) to a Cv of 2.2 (Kv 1.9)

Terminations
SAE & G thread (BSPP)

Everis PLQ QD Line

Everis PLQ2 quick disconnects Everis PLQ4 quick disconnects

Pressure
Vacuum to 120 psi, 8.3 bar

Temperature
0°F to 240°F (-17°C to 115°C)

Flow
Nominal flow of 1/8" (3.2 mm) to 1/4" (6.4 mm)
Cv of 0.37 (Kv 0.32) to a Cv of 1.3 (Kv 1.1)

Terminations
Locking hose barb, SAE & G thread (BSPP)
